$66.00
RockJock Narrow 2" Forged Johnny Joint® 1" RH Thread (1.600" x .625" Ball)—
$66.00
The Story

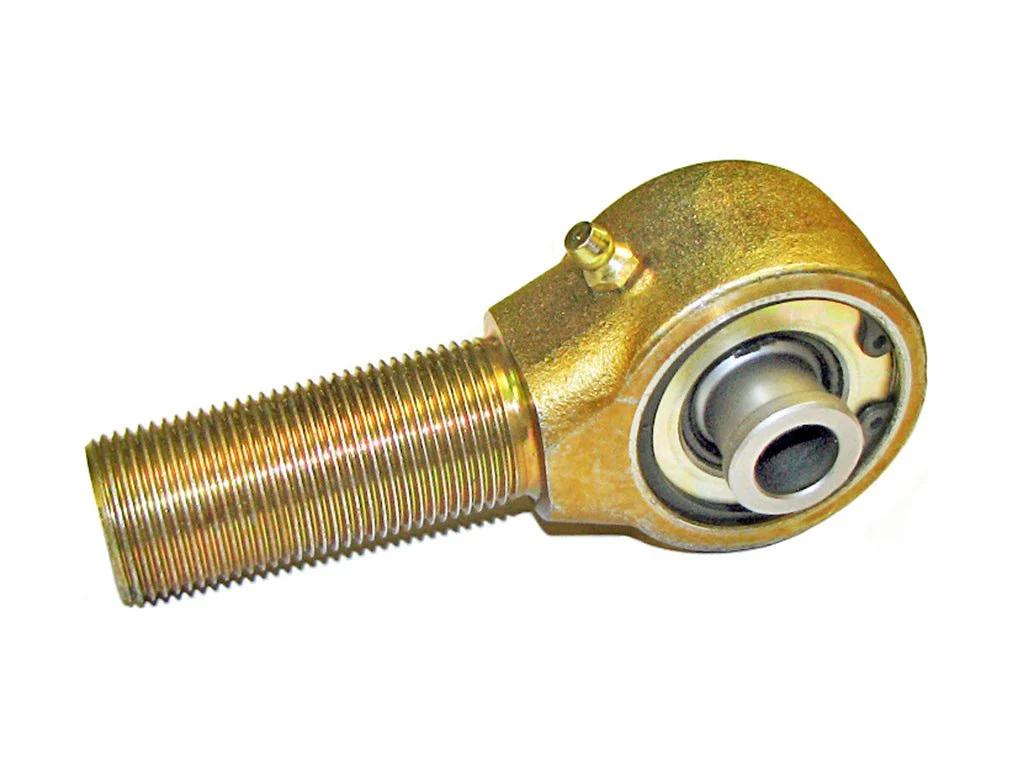

This narrow 2" forged Johnny Joint® is a male rod end that accepts Johnny Joint® internals that are unique to this narrow joint. This version features a one piece high performance bushing, .625" thru hole, a 1.600" mounting width, 2 1/4" of 1"-14 right hand threads on the shank and is greasable through the outer shell. Finished in gold zinc plating.
| Body Type | Forged Steel (Threaded) |
| Body Series | 2 inch OD, Narrow Body |
| Body Width | 1.2 inches |
| Thread Size | 1 inch, 14 TPI |
| Thread Direction | Right Hand |
| Shank Length | 2-1/4 inch |
| Mount Width | 1.600 inches |
| Hole Diameter | .625 inch (5/8) |
| Misalignment | 22° Total |
| Lubrication Method | External zerk fitting located on joint body |
Description
This narrow 2" forged Johnny Joint® is a male rod end that accepts Johnny Joint® internals that are unique to this narrow joint. This version features a one piece high performance bushing, .625" thru hole, a 1.600" mounting width, 2 1/4" of 1"-14 right hand threads on the shank and is greasable through the outer shell. Finished in gold zinc plating.
| Body Type | Forged Steel (Threaded) |
| Body Series | 2 inch OD, Narrow Body |
| Body Width | 1.2 inches |
| Thread Size | 1 inch, 14 TPI |
| Thread Direction | Right Hand |
| Shank Length | 2-1/4 inch |
| Mount Width | 1.600 inches |
| Hole Diameter | .625 inch (5/8) |
| Misalignment | 22° Total |
| Lubrication Method | External zerk fitting located on joint body |
